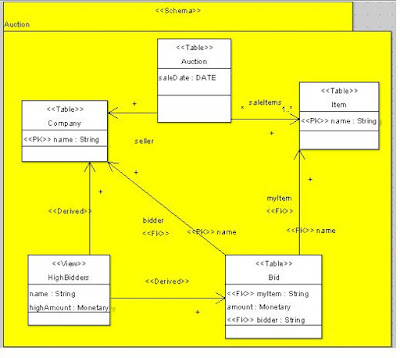

I use ArgoUML for database modeling, just add some stereotypes such as Database, Schema, Table, PK, FK with class diagram.
For a typical example, see these useful page:
- http://argouml-db.tigris.org/documentation/DB_UML_Guide.htm
- http://argouml-db.tigris.org/documentation/UML_Model.htm
From ahm507.blogspot.com
0 responses to “ArgoUML for Database Modeling”
Do you use it with ArgoUML v0.28.1 ?.
I try to follow the instructions such as copying the jar to the ext directory but I can not work with it.
Thanks in advance.
Alejandro G. (from Uruguay)
This is more than one year old.
I remember it was before 0.24.
Sorry, I am not using it currently.
Hi Ahmed,
it's ok. I apreciate very much your comment.
Finally, we install dbuml as a bundle with argouml and we are working with it.
Sincerely,
Alejandro G.
